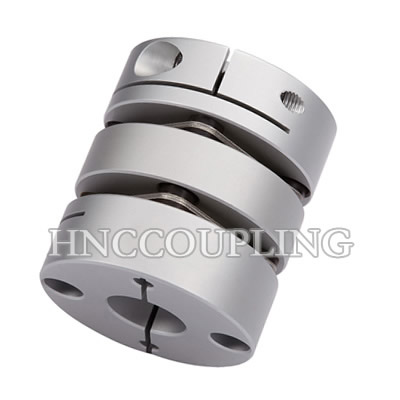

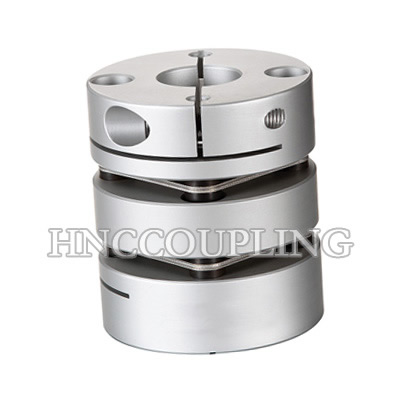

Clamp Type Disc Coupling
Product Name:Clamp Type Disc Coupling;
Type:HD2C Series Clamp Disc Coupling;
Diamenter of the shaft hole:3~42 mm;
Maximum diameter D:19~82mm
Material:Aluminum
Nominal torsion:1~100 N.m
Description
Clamp Type Disc Coupling Features:
*Bushings made of High-strength aluminum alloy
*The diaphragm is made of 304 SS
*With high torque capacity,can accurately control shaft rotation,high precision control can be performed.
*For servomotor/stepmotor connect
*Zero backlash,Suitable for forward reverse
*Low rotational inertia,suitable for high-speed operation
*Clamp type

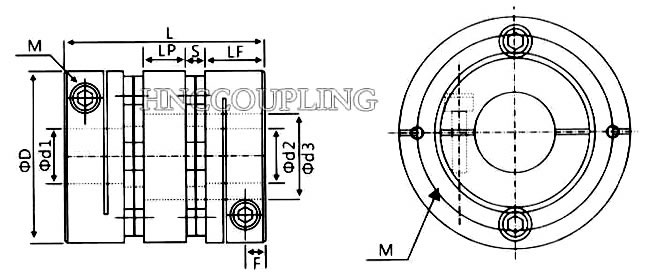

| Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
LF
(mm) |
LP
(mm) |
S
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HD2C-19X27 | 3~8 | 19 | 27 | 9.1 | 5.2 | 1.8 | 3.3 | M2.5 | 1 | 10000 |
| HD2C-26X35 | 5~14 | 26 | 35 | 11.65 | 6.5 | 2.6 | 3.9 | M3 | 1.5 | 10000 |
| HD2C-32X41 | 5~15 | 32 | 41 | 12.25 | 9.5 | 3.5 | 3.85 | M3 | 2 | 10000 |
| HD2C-34X45 | 5~16 | 34 | 45 | 14.25 | 9.5 | 3.5 | 4.85 | M4 | 3 | 10000 |
| HD2C-39X50 | 8~19 | 39 | 50 | 14.9 | 11.2 | 4.5 | 5 | M4 | 6 | 10000 |
| HD2C-44X50 | 8~22 | 44 | 50 | 14.9 | 11.2 | 4.5 | 5 | M4 | 9 | 10000 |
| HD2C-50X63 | 8~25 | 50 | 63 | 20.6 | 12.2 | 4.8 | 6 | M5 | 18 | 10000 |
| HD2C-56X64 | 10~32 | 56 | 64 | 19.75 | 13.5 | 5.5 | 6.4 | M5 | 25 | 10000 |
| HD2C-68X75 | 12~38 | 68 | 75 | 23.35 | 15.7 | 6.3 | 7.7 | M6 | 60 | 9000 |
| HD2C-82X98 | 17~42 | 82 | 98 | 30 | 22 | 8 | 9.7 | M8 | 100 | 8000 |
