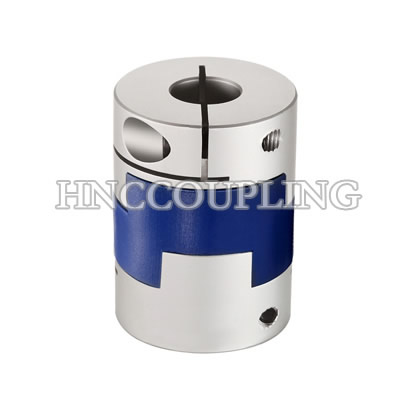

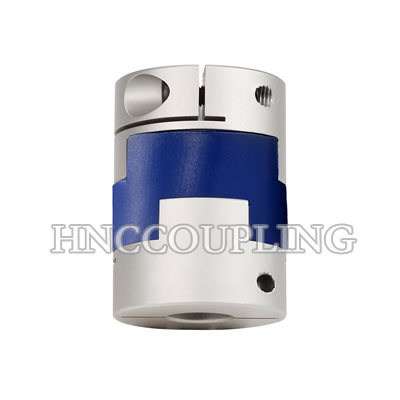

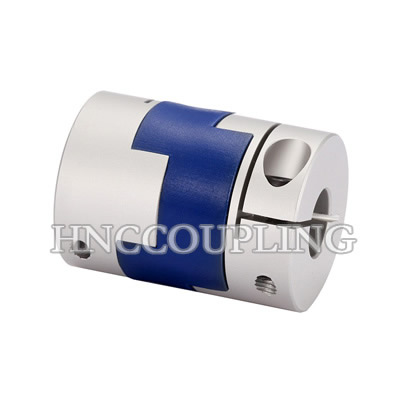

Oldham Coupling (HOC Type)
Product name:Oldham Coupling
Type:HOC Type Oldham Shaft Coupling;
Bore:4~38mm;
Diamenter:16~70mm;
Material: aluminium;
Description
| Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
LF
(mm) |
LP
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HOC-16X21 | 4~6.35 | 16 | 21 | 8.6 | 11.6 | 2.5 | M2.5 | 0.7 | 8500 |
| HOC-16X30 | 4~6.35 | 16 | 30 | 13.1 | 11.6 | 3 | M2.5 | 0.7 | 9000 |
| HOC-20X22 | 5~8 | 20 | 22 | 8.6 | 12.7 | 2.5 | M2.5 | 1.2 | 6500 |
| HOC-20X33 | 5~8 | 20 | 33 | 14.1 | 12.7 | 3 | M2.5 | 1.2 | 7000 |
| HOC-25X28 | 5~12 | 25 | 28 | 11.7 | 16.65 | 3 | M3 | 2 | 5500 |
| HOC-25X39 | 5~12 | 25 | 39 | 17.2 | 16.65 | 4.2 | M3 | 2 | 6000 |
| HOC-32X33 | 5~16 | 32 | 33 | 14 | 19.5 | 3 | M4 | 4.5 | 4500 |
| HOC-32X45 | 5~16 | 32 | 45 | 20 | 19.5 | 4.5 | M4 | 4.5 | 4800 |
| HOC-40X50 | 8~19 | 40 | 50 | 23 | 18.4 | 7 | M5 | 9 | 3600 |
| HOC-45X46 | 8~22 | 45 | 46 | 21 | 18.4 | 7 | M5 | 12 | 3500 |
| HOC-50X53 | 10~24 | 50 | 53 | 24 | 15 | 7.5 | M6 | 19 | 3000 |
| HOC-50X58 | 10~24 | 50 | 58 | 26.5 | 17.5 | 8 | M6 | 19 | 3000 |
| HOC-55X57 | 10~28 | 55 | 57 | 26 | 17.5 | 7.8 | M6 | 25 | 3000 |
| HOC-63X71 | 14~32 | 63 | 71 | 33 | 24 | 10 | M8 | 33 | 2550 |
| HOC-70X77 | 14~38 | 70 | 77 | 29.5 | 25 | 12 | M8 | 56 | 2500 |
